Water convector. Price

Model VCV.90.360.4PH

Height: 90 mm.

Width: 360 mm.

Version: with fan

Thermal power: (90/70/20 ° C) 303 - 8971 W.

Heat exchanger: 4 pipe, horizontal

Standardlength: 600-3000 mm. (step 50 mm.)

Adjustable height of convector housing	0 - 40 mm
Coil	2-pipe, horizontal

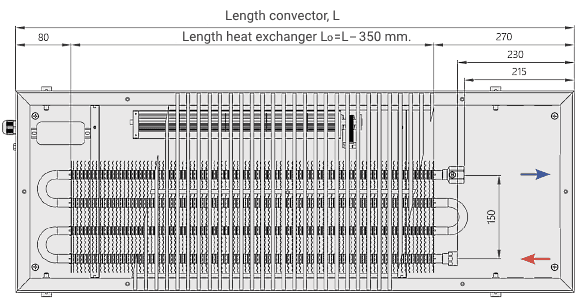

Length of heat exchanger	L- 350 mm.
Width of heat exchanger	200 mm.
Heat exchanger height	50 mm.
Pipe diameter	15 mm.
Working pressure	16 atm (1.6 MPa)
Connection	2 x G1 / 2" (female thread)
The distance between axes of tubes of the heat exchanger	150 mm.
Maximum coolant temperature	95 °С
Voltage	220 V AC, 50 Hz

Temperature coolant °C (tvh/tvyh)	Temperature indoor air °C	Standard convector length [mm]
				700	900	1000	1250	1500	1750	2000	2250	2500	2750	3000
				Thermal power [W]
fan off
(DIN 4704) 90/70	20	303	454	530	719	909	1098	1287	1476	1666	1855	2044
(EN-442) 75/65			239	358	418	567	717	866	1016	1165	1314	1464	1613
80/70			270	406	473	642	811	980	1149	1319	1488	1657	1826
minimum fan speed
(DIN 4704) 90/70	20	955	1432	1671	2267	2864	3461	4057	4654	5251	5847	6444
(EN-442) 75/65			753	1130	1318	1789	2260	2730	3201	3672	4143	4613	5084
80/70			853	1279	1492	2025	2558	3090	3623	4156	4689	5222	5755
average fan speed
(DIN 4704) 90/70	20	1034	1551	1810	2456	3103	3749	4396	5042	5689	6335	6981
(EN-442) 75/65			816	1224	1428	1938	2448	2958	3468	3978	4488	4998	5508
80/70			924	1386	1616	2194	2771	3348	3926	4503	5080	5657	6235
maximum fan speed
(DIN 4704) 90/70	20	1329	1994	2326	3157	3987	4818	5648	6479	7310	8140	8971
(EN-442) 75/65			1049	1573	1835	2490	3146	3801	4457	5112	5767	6423	7078
80/70			1187	1780	2077	2819	3561	4303	5044	5786	6528	7270	8012
Power consumption at power supply, [W]
~12 V			19	19	19	30	38	49	60	62	81	81	92
~230 V			18	19	21	29	42	48	58	58	76	79	87
Convector weight, [kg]			8,6	10,7	11,9	14,7	17,5	20,8	23,8	26,6	30,0	32,7	35,7
