Underfloor convector price

Model VCV.90.260.2PH

Height: 90 mm.

Width: 260 mm.

Version: with fan

Thermal power: (90/70/20 ° C) 214 - 5179 W.

Heat exchanger: 2 pipe, horizontal

Standardlength: 600-3000 mm. (step 50 mm.)

Adjustable height of convector housing	0 - 40 mm
Coil	2-pipe, horizontal

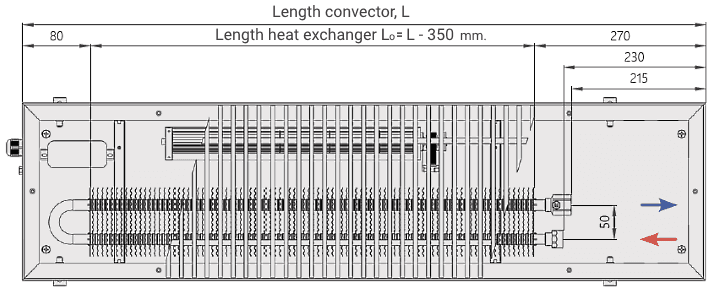

Length of heat exchanger	L- 350 mm.
Width of heat exchanger	100 mm.
Heat exchanger height	50 mm.
Pipe diameter	15 mm.
Working pressure	16 atm (1.6 MPa)
Connection	2 x G1 / 2 "(female thread)
The distance between axes of tubes of the heat exchanger	50 mm.
Maximum coolant temperature	95 °С
Voltage	220 V AC, 50 Hz

Temperature coolant °C (tvh/tvyh)	Temperature indoor air °C	Standard convector length [mm]
				700	900	1000	1250	1500	1750	2000	2250	2500	2750	3000
				Thermal power [W]
fan off
(DIN 4704) 90/70	20	214	321	374	508	641	775	908	1042	1175	1309	1443
(EN-442) 75/65			169	253	295	400	506	611	717	822	927	1033	1138
80/70			191	286	334	453	573	692	811	930	1050	1169	1288
minimum fan speed
(DIN 4704) 90/70	20	551	827	965	1309	1653	1998	2342	2687	3031	3376	3720
(EN-442) 75/65			435	652	761	1033	1305	1576	1848	2120	2392	2663	2935
80/70			492	738	861	1169	1477	1784	2092	2400	2707	3015	3322
average fan speed
(DIN 4704) 90/70	20	597	896	1045	1418	1791	2165	2538	2911	3284	3658	4031
(EN-442) 75/65			471	707	824	1119	1413	1708	2002	2297	2591	2886	3180
80/70			533	800	933	1267	1600	1933	2266	2600	2933	3266	3600
maximum fan speed
(DIN 4704) 90/70	20	767	1151	1343	1822	2302	2782	3261	3741	4220	4700	5179
(EN-442) 75/65			605	908	1059	1438	1816	2195	2573	2951	3330	3708	4086
80/70			685	1028	1199	1627	2056	2484	2912	3341	3769	4197	4626
Power consumption at power supply, [W]
~12 V			19	19	19	30	38	49	60	62	81	81	92
~230 V			18	19	21	29	42	48	58	58	76	79	87
Convector weight, [kg]			6,6	8,1	9,0	11,0	13,0	15,5	17,7	19,8	22,3	24,3	26,4
