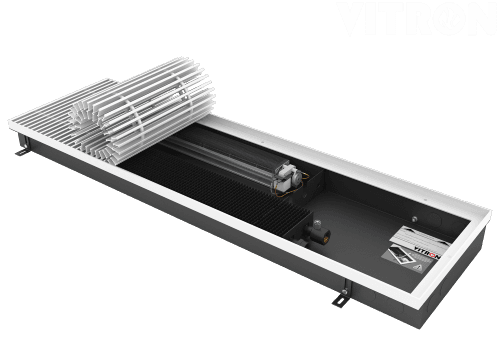

Floor convector with fan

Model VCV.75.300.2PH

Height: 75 mm.

Width: 300 mm.

Version: with fan

Thermal power: (90/70/20 ° C) 234 - 6037 W.

Heat exchanger: 2 pipe, horizontal

Standardlength: 600-3000 mm. (step 50 mm.)

Adjustable height of convector housing	0 - 40 mm
Coil	2-pipe, horizontal
Length of heat exchanger	L- 350 mm.
Width of heat exchanger	100 mm.
Heat exchanger height	50 mm.
Pipe diameter	15 mm.
Working pressure	16 atm (1.6 MPa)
Connection	2 x G1 / 2 "(female thread)
The distance between axes of tubes of the heat exchanger	50 мм.
Maximum coolant temperature	95 °С
Voltage	220 V AC, 50 Hz

Temperature coolant °C (tvh/tvyh)	Temperature indoor air °C	Standard convector length [mm]
				700	900	1000	1250	1500	1750	2000	2250	2500	2750	3000
				Thermal power [W]
fan off
(DIN 4704) 90/70	20	234	351	409	555	701	847	993	1139	1285	1432	1578
(EN-442) 75/65			184	277	323	438	553	668	784	899	1014	1129	1245
80/70			209	313	365	496	626	757	887	1018	1148	1278	1409
minimum fan speed
(DIN 4704) 90/70	20	642	964	1124	1526	1927	2329	2730	3132	3533	3935	4336
(EN-442) 75/65			507	760	887	1204	1521	1837	2154	2471	2788	3104	3421
80/70			574	861	1004	1363	1721	2080	2438	2797	3155	3514	3872
average fan speed
(DIN 4704) 90/70	20	696	1044	1218	1653	2088	2523	2958	3393	3828	4263	4698
(EN-442) 75/65			549	824	961	1304	1647	1991	2334	2677	3020	3363	3707
80/70			622	932	1088	1476	1865	2253	2642	3030	3419	3807	4196
maximum fan speed
(DIN 4704) 90/70	20	894	1342	1565	2124	2683	3242	3801	4360	4919	5478	6037
(EN-442) 75/65			706	1058	1235	1676	2117	2558	2999	3440	3831	4322	4763
80/70			799	1198	1398	1897	2396	2895	3395	3894	4393	4892	5391
Power consumption at power supply, [W]
~12 V			19	19	19	30	38	49	60	62	81	81	92
~230 V			18	19	21	29	42	48	58	58	76	79	87
Convector weight, [kg]			7,1	8,6	9.4	11,5	13.7	15,8	18,0	20,0	22,5	24.5	26.5
