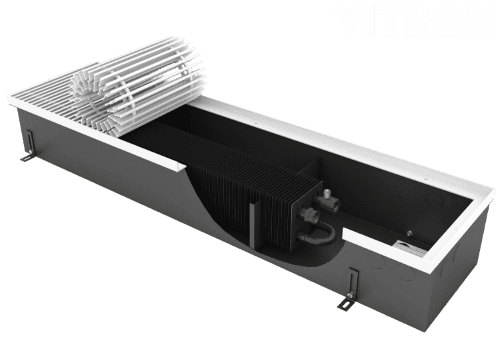

Сonvector which is built in a floor. Prise

Model VCV.150.260.4PS

Height: 150 mm.

Width: 260 mm.

Version: with fan

Thermal power: (90/70/20 ° C) 327 - 10468 W.

Heat exchanger: 4 pipe square

Standardlength: 600-3000 mm. (step 50 mm.)

Type	Height [mm]	Width [mm]	Thermal power	Standard length [mm]
Type	Height [mm]	Width [mm]		Standard length [mm]		(90/70/20 °C) [W]
VCV.150.260.4PS *	150	260	327 - 10468	600 - 3000 mm. (step 50 mm.)
* 2 pipe horizontal (2PH)					Сonvector which is built in a floor. Prise

Adjustable height of convector housing	0 - 40 mm
Coil	4 pipe, square

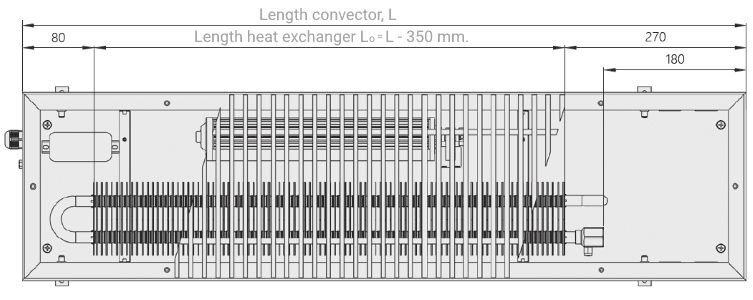

Length of heat exchanger	L- 350 mm.
Width of heat exchanger	100 mm.
Heat exchanger height	100 mm.
Pipe diameter	15 mm.
Working pressure	16 atm (1.6 MPa)
Connection	2 x G1 / 2 "(female thread)
The distance between axes of tubes of the heat exchanger	50 mm.
Maximum coolant temperature	95 °С
Voltage	~12 / 220 V. AC, 50 Hz .

Temperature coolant °C (tvh/tvyh)	Temperature indoor air °C	Standard convector length [mm]
				700	900	1000	1250	1500	1750	2000	2250	2500	2750	3000
				Thermal power [W]
fan off
(DIN 4704) 90/70	20	327	490	572	776	981	1185	1389	1593	1798	2002	2206
(EN-442) 75/65			258	387	451	612	774	935	1096	1257	1418	1580	1741
80/70			292	438	511	693	876	1058	1241	1423	1605	1788	1970
minimum fan speed
(DIN 4704) 90/70	20	1114	1671	1949	2646	3342	4038	4734	5430	6127	6823	7519
(EN-442) 75/65			879	1318	1538	2087	2637	3186	3735	4284	4834	5383	5932
80/70			995	1492	1741	2363	2984	3606	4228	4850	5471	6093	6715
average fan speed
(DIN 4704) 90/70	20	1207	1810	2112	2866	3621	4375	5129	5883	6638	7392	8146
(EN-442) 75/65			952	1428	1666	2261	2857	3452	4047	4642	5237	5832	6427
80/70			1078	1617	1886	2560	3233	3907	4581	5254	5928	6601	7275
maximum fan speed
(DIN 4704) 90/70	20	1551	2326	2714	3683	4652	5622	6591	7560	8529	9499	10468
(EN-442) 75/65			1224	1835	2141	2906	3671	4435	5200	5965	6730	7494	8259
80/70			1385	2077	2424	3289	4155	5020	5886	6752	7617	8483	9348
Power consumption at power supply, [W]
~12 V			18	27	27	31	54	58	58	62	89	89	93
~230 V			17	33	33	28	66	61	61	56	89	89	84
Convector weight, [kg]			7,9	10,4	11,4	14,0	16,6	20,0	22,5	25,3	28,6	31,2	34,0
