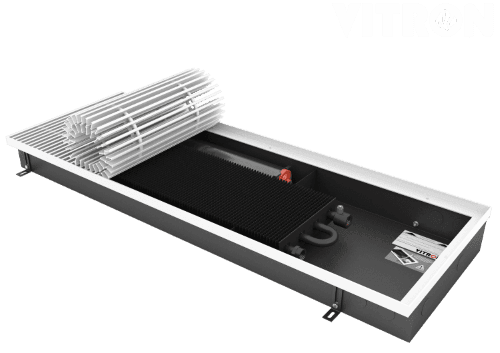

Convector in the floor. Price

Model VCV.110.360.4PH

Height: 110 mm.

Width: 360 mm.

Version: with fan

Thermal power: (90/70/20 ° C) 339 - 10944 W.

Heat exchanger: 4 pipe, horizontal

Standardlength: 600-3000 mm. (step 50 mm.)

Adjustable height of convector housing	0 - 40 mm
Coil	4-pipe, horizontal
Length of heat exchanger	L- 350 mm.
Width of heat exchanger	200 mm.
Heat exchanger height	50 mm.
Pipe diameter	15 mm.
Working pressure	16 atm (1.6 MPa)
Connection	2 x G1 / 2 "(female thread)
The distance between axes of tubes of the heat exchanger	150 mm.
Maximum coolant temperature	95 °С
Voltage	~12 / 220 V AC, 50 Hz

Temperature coolant °C (tvh/tvyh)	Temperature indoor air °C	Standard convector length [mm]
				700	900	1000	1250	1500	1750	2000	2250	2500	2750	3000
				Thermal power [W]
fan off
(DIN 4704) 90/70	20	339	509	594	806	1018	1230	1443	1655	1867	2079	2291
(EN-442) 75/65			268	402	469	636	803	971	1138	1306	1473	1640	1808
80/70			303	455	530	720	909	1099	1288	1478	1667	1857	2046
minimum fan speed
(DIN 4704) 90/70	20	1165	1747	2038	2766	3494	4222	4949	5677	6405	7133	7861
(EN-442) 75/65			919	1378	1608	2182	2756	3331	3905	4479	5053	5628	6202
80/70			1040	1560	1820	2470	3120	3770	4420	5070	5720	6370	7020
average fan speed
(DIN 4704) 90/70	20	1262	1893	2208	2997	3785	4574	5362	6151	6939	7728	8517
(EN-442) 75/65			995	1493	1742	2364	2986	3609	4231	4853	5475	6097	6719
80/70			1127	1690	1972	2676	3380	4085	4789	5493	6197	6901	7606
maximum fan speed
(DIN 4704) 90/70	20	1621	2432	2837	3851	4864	5877	6891	7904	8917	9930	10944
(EN-442) 75/65			1279	1919	2239	3038	3838	4637	5436	6236	7035	7835	8634
80/70			1448	2172	2534	3439	4344	5249	6154	7059	7963	8868	9773
Power consumption at power supply, [W]
~12 V			19	19	19	30	38	49	60	62	81	81	92
~230 V			18	19	21	29	42	48	58	58	76	79	87
Convector weight, [kg]			8.9	11,1	12,3	15,2	18,1	21,4	24,5	27,4	30,8	33,7	36,7
