Model VCV.110.260.2PH

Height: 110 mm.

Width: 260 mm.

Version: with fan

Thermal power: (90/70/20 ° C) 251 - 6374 W.

Heat exchanger: 2 pipe, horizontal

Standardlength: 600-3000 mm. (step 50 mm.)

Type	Height [mm]	Width [mm]	Thermal power	Standard length [mm]
Type	Height [mm]	Width [mm]		Standard length [mm]		(90/70/20 °C) [W]
VCV.110.260.2PH *	110	260	251 - 6374	600 - 3000 mm. (step 50 mm.)
* 2 pipe horizontal (2PH)					Heating convector water price

Adjustable height of convector housing	0 - 40 mm
Coil	2-pipe, horizontal

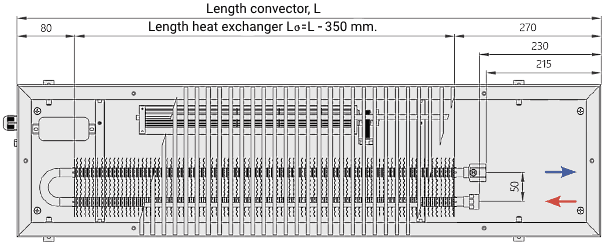

Length of heat exchanger	L- 350 mm.
Width of heat exchanger	100 mm.
Heat exchanger height	50 mm.
Pipe diameter	15 mm.
Working pressure	16 atm (1.6 MPa)
Connection	2 x G1 / 2 "(female thread)
The distance between axes of tubes of the heat exchanger	50 mm.
Maximum coolant temperature	95 °С
Voltage	~12 / 220 V AC, 50 Hz

Temperature coolant °C (tvh/tvyh)	Temperature indoor air °C	Standard convector length [mm]
				700	900	1000	1250	1500	1750	2000	2250	2500	2750	3000
				Thermal power [W]
fan off
(DIN 4704) 90/70	20	251	377	440	597	754	911	1069	1226	1383	1540	1697
(EN-442) 75/65			198	298	347	471	595	719	843	967	1091	1215	1339
80/70			225	337	393	533	674	814	954	1095	1235	1375	1516
minimum fan speed
(DIN 4704) 90/70	20	678	1017	1187	1611	2035	2459	2883	3307	3731	4154	4578
(EN-442) 75/65			535	803	936	1271	1605	1940	2274	2609	2943	3278	3612
80/70			606	909	1060	1439	1817	2196	2574	2953	3332	3710	4089
average fan speed
(DIN 4704) 90/70	20	735	1102	1286	1745	2205	2664	3123	3582	4042	4501	4960
(EN-442) 75/65			580	870	1015	1377	1739	2102	2464	2826	3189	3551	3914
80/70			656	984	1148	1559	1969	2379	2789	3199	3609	4020	4430
maximum fan speed
(DIN 4704) 90/70	20	944	1416	1653	2243	2833	3423	4013	4603	5194	5784	6374
(EN-442) 75/65			745	1118	1304	1769	2235	2701	3166	3632	4098	4563	5029
80/70			843	1265	1476	2003	2530	3057	3584	4111	4638	5165	5692
Power consumption at power supply, [W]
~12 V			19	19	19	30	38	49	60	62	81	81	92
~230 V			18	19	21	29	42	48	58	58	76	79	87
Convector weight, [kg]			6,9	8,5	9,3	11,5	13,5	16,1	18,4	20.5	23,1	25,1	27,4
