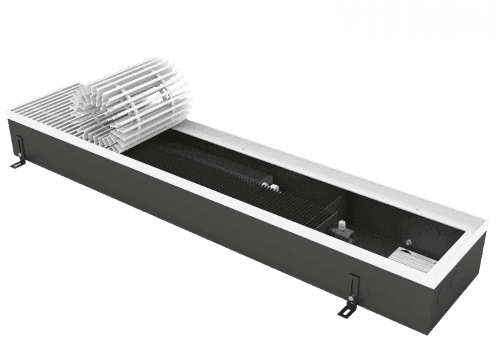

Convector heating water

Model VCV.110.260.2PH

Height: 110 mm.

Width: 200 mm.

Version: with fan

Thermal power: (90/70/20 ° C) 221 - 5333 W.

Heat exchanger: 2 pipe, horizontal

Standardlength: 600-3000 mm. (step 50 mm.)

Adjustable height of convector housing	0 - 40 mm
Coil	2-pipe, horizontal

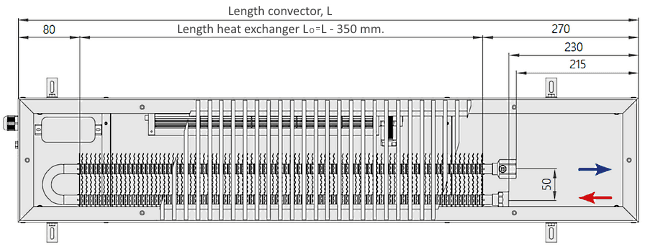

Length of heat exchanger	L- 350 mm.
Width of heat exchanger	100 mm.
Heat exchanger height	50 mm.
Pipe diameter	15 mm.
Working pressure	16 atm (1.6 MPa)
Connection	2 x G1 / 2 "(female thread)
The distance between axes of tubes of the heat exchanger	50 mm.
Maximum coolant temperature	95 °С
Voltage	~12 / 220 V AC, 50 Hz

Temperature coolant °C (tvh/tvyh)	Temperature indoor air °C	Standard convector length [mm]
				700	900	1000	1250	1500	1750	2000	2250	2500	2750	3000
				Thermal power [W]
fan off
(DIN 4704) 90/70	20	221	332	387	525	663	802	940	1078	1216	1355	1493
(EN-442) 75/65			174	262	305	414	523	632	742	851	960	1069	1178
80/70			197	296	346	469	592	716	839	963	1086	1210	1333
minimum fan speed
(DIN 4704) 90/70	20	568	851	993	1348	1703	2057	2412	2767	3121	3476	3831
(EN-442) 75/65			448	672	784	1063	1343	1623	1903	2183	2463	2742	3022
80/70			507	760	887	1204	1520	1837	2154	2471	2787	3104	3421
average fan speed
(DIN 4704) 90/70	20	615	922	1076	1460	1845	2229	2613	2997	3382	3766	4150
(EN-442) 75/65			485	728	849	1152	1455	1759	2062	2365	2668	2971	3274
80/70			549	824	961	1304	1647	1990	2334	2677	3020	3363	3706
maximum fan speed
(DIN 4704) 90/70	20	790	1185	1383	1876	2370	2864	3358	3852	4346	4839	5333
(EN-442) 75/65			623	935	1091	1480	1870	2260	2649	3039	3429	3818	4208
80/70			706	1058	1235	1676	2117	2558	2999	3440	3881	4322	4763
Power consumption at power supply, [W]
~12 V			19	19	19	30	38	49	60	62	81	81	92
~230 V			18	19	21	29	42	48	58	58	76	79	87
Convector weight, [kg]			6,1	7,7	8,5	10,7	12,7	15,3	17,6	19,7	22,3	24,3	26,6
