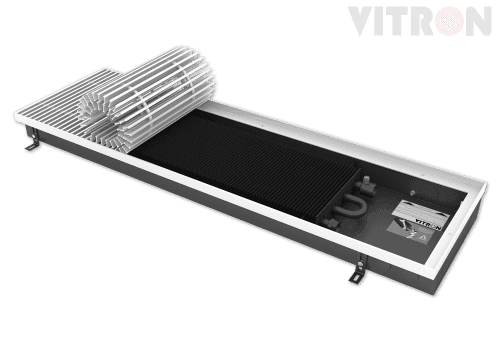

Convectors heating water in the floor
MODEL VC.75.300.4PH
Convector type: VC 75.300.4PH
Height: 75 mm.
Width: 300 mm.
Thermal power: DIN 4704 (90/70/20 ° C)
266 - 1797 W.
Standard length: 600-3000 (step 50 mm.)
| Type | Height [mm] | Width [mm] | Thermal power | Standard length [mm] |
| (90/70/20 °C) [W] | ||||
| VC.75.300.4PH | 75 | 300 | 266 - 1797 | 600 - 3000 (step 50 mm) |
| Convectors heating water in floor | ||||

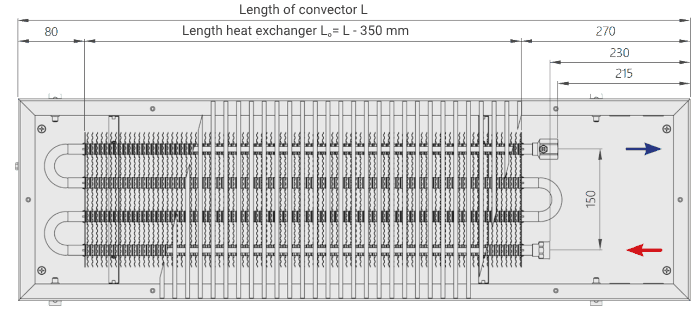

VC.75.300.4PH
(Heat exchanger 4 pipe, horizontal)
| Adjustable height of convector housing | 0 - 40 mm |
| Coil | 4-pipe |
| Length of the fins | L- 350 mm |
| The width of the fins | 200 mm |
| The height of the fins | 50 mm |
| Pipe diameter | 15 |
| Working pressure | 16 atm (1.6 MPa) |
| Connection | 2 x G1 / 2' (internal thread) |
| The distance between axes of tubes of the heat exchanger | 150 mm |
| Maximum coolant temperature | 95 °С |
Thermal power of water convector VC.75.300.4PH
Price for convectors VC.75.300.4PH
- Convector selection: Сonvector without fan
