Convector heating water

Model VC.150.400.12PR

Type of convector: VC.150.400.12PR

Height: 150 mm.

Width: 400 mm.

Version: without fan

Thermal power: (90/70/20 ° C) 768 - 5184 W.

Standard length: 600-3000 mm. (step 50 mm.)

Type	Height [mm]	Width [mm]	Thermal power	Standard length [mm]
						(90/70/20 °C) [W]
VC.150.400.12PR *	150	400	768 - 5184	600 - 3000 mm. (step 50 mm.)
* Heat exchanger: 12 pipe, rectangular (.12PR)					Convector heating water

Adjustable height of convector housing	0 - 40 mm.
Coil	12 pipe, rectangular

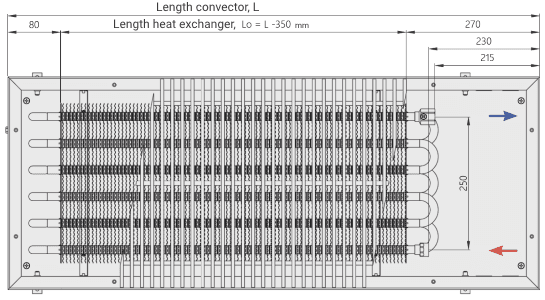

Length of heat exchanger	L- 350 mm.
Width of heat exchanger	300 mm.
Heat exchanger height	100 mm.
Pipe diameter	15 mm.
Working pressure	16 atm (1.6 MPa)
Connection	2 x G1 / 2' (internal thread)
The distance between axes of tubes of the heat exchanger	250 mm.
Maximum coolant temperature	95 °С
