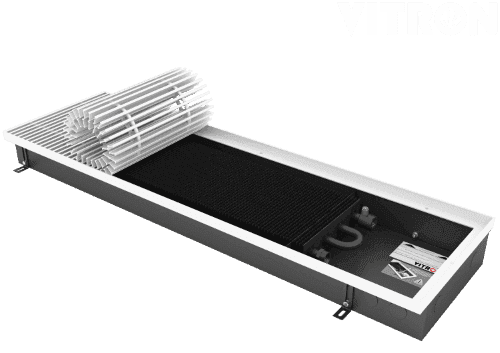

Heating convectors, water, built in the floor

Model VC.110.300.4PH

Type of convector: VC.110.300.4PH

Height: 110 mm.

Width: 300 mm.

Version: without fan

Thermal power: (90/70/20 ° C) 321 - 2164 W.

Standard length: 600-3000 mm. (step 50 mm.)

Type	Height [mm]	Width [mm]	Thermal power	Standard length [mm]
						(90/70/20 °C) [W]
VC.110.300.4PH*	110	300	321 - 2164	600 - 3000 mm. (step 50 mm.)
* Heat exchanger: 4 pipe, horizontal (.4PH)					Heating convectors, water, built in the floor

Adjustable height of convector housing	0 - 40 mm.
Coil	2-pipe, horizontal

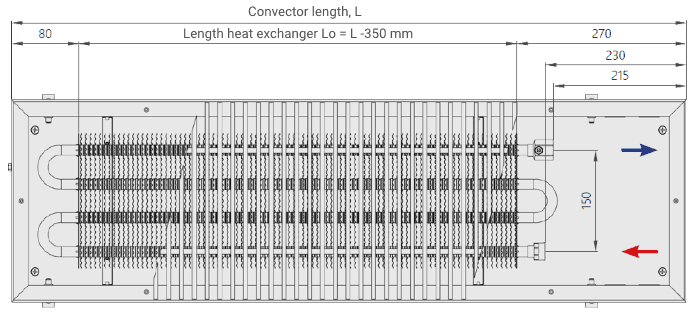

Length of heat exchanger	L- 350 mm.
Width of heat exchanger	200 mm.
Heat exchanger height	50 mm.
Pipe diameter	15 mm.
Working pressure	16 atm (1.6 MPa)
Connection	2 x G1 / 2' (internal thread)
The distance between axes of tubes of the heat exchanger	150 mm.
Maximum coolant temperature	95 °С

Convector selection: Сonvector without fan
